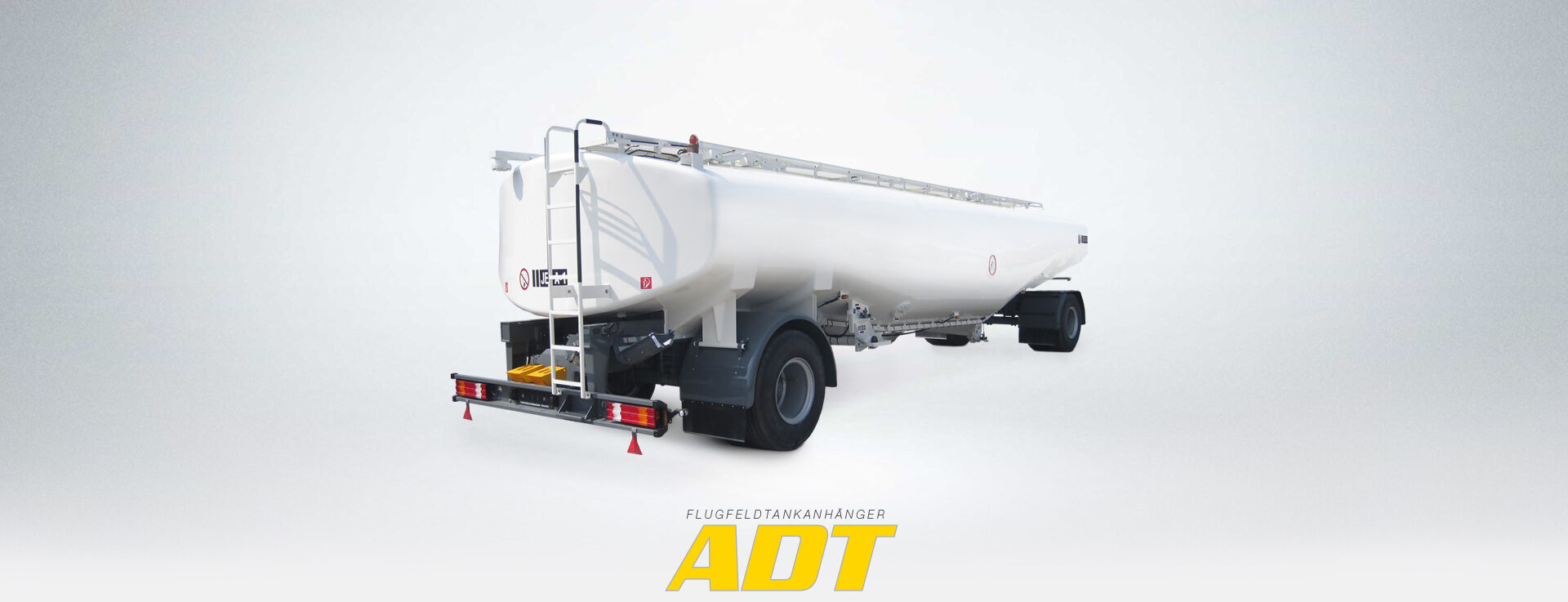

Our volume-optimised aircraft refuelling vehicles are generally developed and produced according to customer-specifications for use on the airport apron and for refuelling helicopters and aircraft. Our products are remarkable for their optimum axle load utilisation, maximum manoeuvrability, and well-thought-out details for easy operation.

  • Payload-optimized aluminium design
  • Compact dimensions, low profile
  • Galvanized turntable steel frame
  • Clear and ergonomic design of the controls
  • Long service life, high profitability and cost-effectiveness
  • Easy to maintain and repair
Standard equipment:

Tank

  • Multiple-wedge, box-shaped or single-compartment Tank shape
  • Watersump Integrated into the tank sole, with inspection port and drainage
  • Volume gauge Bayham 10“

Filling/discharge equipment

  • Manhole cover Ø 600 mm
  • Filling port Ø 300 mm
  • Vent valve 2x with pneumatic control system
  • Dipstick mechanism 1x mechanical with high fill mark
  • Drain valve 1x NW100 bottom valve*/150 pneumatic control system
  • Filling device 1x NW100 bottom valve, pneumatic control system 1 FC 107 filling coupling
  • Suction hose 1x TW100/DDC-M100-4" *, 2x TW65/CCMY 8253 2 1/2" **



*ADT 17 **ADT 45

Chassis

  • BPW Axles
  • EBS + RSS Brake system
  • Steel Rims
  • Tires Brand of our choice

Electrical system

  • 24 V 15-pin AMP Design

Equipment

  • low-maintenance Drawbar
  • low-maintenance Slewing ring
  • Mudguard PVC
  • Chocks 2x



Other equipment upon request

Technical data

Tank material/shape

Aluminium

Self-supporting multiple wedge or box-shaped

Volume

ADT 17

17.000 l

ADT 45

45.000 l

Height

ADT 17

approx. 3.050 mm

ADT 45

approx. 2.760 mm

Lenght

ADT 17

approx. 7.750 mm

ADT 45

approx. 13.900 mm

Discharge flow rate*

Up to 3 000 l/min

*dependent on tractor vehicle

Downloads

Optional equipment (examples):
  • Digital tank volume display with electronical dipstick
  • Storage boxes/glove compartments
  • Brackets for mobile ladders and work platforms
  • Work lights/perimeter illumination
  • High mounted rear lights
  • LED rear lighting
  • Snow/rain cover for dome fittings
  • Aluminium rims for the ADT 17 version
  • Wheel nut indicators
