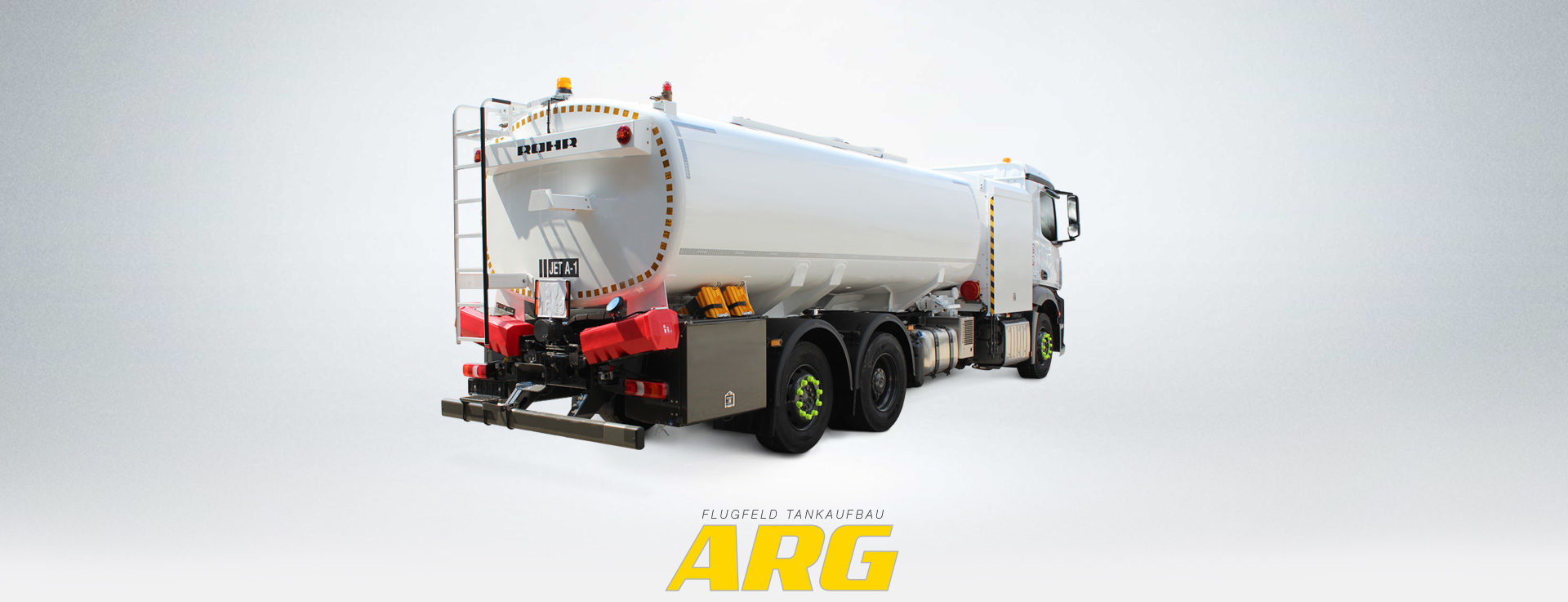

Our volume-optimised aircraft refuelling vehicles are generally developed and produced according to customer specifications for use on the airport apron and for refuelling helicopters and aircraft. Our products are remarkable for their optimum axle load utilisation, maximum manoeuvrability, and well-thought-out details for easy operation.

  • Chassis from all manufacturers
  • Payload-optimized aluminium design
  • Compact dimensions, low profile, many possible applications
  • Clear and ergonomic control design
  • Long service life, high profitability and cost-effectiveness
  • Easy to maintain and repair
Standard equipment:

Tank

  • Multiple-wedge, box-shaped or single-compartment Tank shape
  • Watersump integrated into the tank sole, with inspection port and drainage
  • Volume gauge Bayham 10";

Filling/discharge equipment

  • Manhole cover Ø 600 mm
  • Filling port Ø 300 mm
  • Vent valve 2x with pneumatic control system
  • Dipstick mechanism 1x mechanical with high fill mark
  • Drain valve 1x NW100 bottom valve, pneumatic control system
  • Filling device 1x NW100 bottom valve, pneumatic control system FC107 filling coupling
  • Mechanically- or hydraulicallydriven centrifugal pump or vane pump
  • Filter according to API/EI 1581/1583

Measuring system

  • Assembly, calibration, and verification of all common measuring systems
  • With temperatur quantity transducer and mechanical or electronic counter
  • Up to three full hose systems with hydraulic winding
  • According to national and international calibration regulations (MID, OIML)

Electrical system

  • 24 V, ADR-compliant (FL/AT) Design
  • Interlock system PLC-controlled
  • Dead-man system Electrical/pneumatic

Other equipment upon request

Technical data

Tank material/shape

Aluminium

Multiple-wedge, box-shaped

Volume

ARG 6

6.000 l

ARG 20

20.000 l

Fuelling capabilities

ARG 6

1x overwing reel hose

ARG 20

1x overwing reel hose
1x underwing reel hose

Flowrate

 50 l/min – 1.200 l/min

Downloads

Optional equipment (examples):
  • Stainless steel tank
  • Digital tank volume display with electronical dipstick
  • Closed fitting cabinet with hinged flaps or roller shutters
  • Closed sampling
  • Defuelling device
  • Additional large counter display on the fitting cabinet
  • Lifting platform
  • Hose panthograph
  • Data connection
  • Storage boxes/glove compartments
  • Work lights/perimeter illumination
  • Camera system for position monitoring
