Our volume-optimised aircraft refuelling vehicles are generally developed and produced according to customer specifications for use on the airport apron and for refuelling helicopters and aircraft. Our products are remarkable for their optimum axle load utilisation, maximum manoeuvrability, and well-thought-out details for easy operation.



  • Chassis of all manufacturers
  • Low-flow or high-flow design
  • Compact dimensions, low profile, short wheelbase
  • Universal applicability within the range of the pit system
  • Clear and ergonomic design of the controls
  • Long service life, high profitability and cost-effectiveness
  • Easy to maintain and repair
Standard equipment:

Technical data

  • Length approx. 7 500 mm*
  • Width approx 3 000 mm*
  • Height approx 2 550 mm*

Fitting frame

  • galvanized steel Design

Filling/discharge equipment

  • Pit coupler 4” Type 64910 with coupling trolley
  • Inlet hose 4”, at least 10m with eight hose trolleys
  • Filter according to API/EI 1581/1583
  • Deck hose 2 1/2“ about 3.5 m coupling Type 60427
  • Underwing hose 2” about 20m coupling Type 60427

Dump Tank

  • Aluminium Design with 150-l capacity



*dependent on chassis type

Measuring system

  • Assembly, calibration, and verification of all common measuring systems
  • With mechanical or electronic counter
  • Wet hose systems with hydraulic winding
  • According to national and international calibration regulations (MID, OIML)

Electrical system

  • 24 V, ADR-compliant (FL/AT) Design
  • Interlock system PLC-controlled
  • Dead-man system Electric/pneumatic



Other equipment upon request

Technical data

Fuelling capabilities

Low-Flow

1x deck hose
1x under wing reel hose

High-Flow

2x deck hose
1x under wing reel hose

Flowrate

Low-Flow

up to 1 500 l/min

High-Flow

up to 4 000 l/min

Lifting platform height

up to 4.2 m* and 4.5 m*

*above ground level

Downloads

Optional equipment (examples):
  • Stainless steel pipe system
  • Hydraulic coupler hose lifting device
  • Closed fitting cabinet with hinged flaps or roller shutters
  • Closed sampling
  • ABVE 32 bladder accumulator
  • Additional large counter display on the fitting cabinet
  • Hose panthograph
  • Data connection
  • Storage boxes/glove compartments
  • Work lights/perimeter illumination
  • Camera system for position monitoring

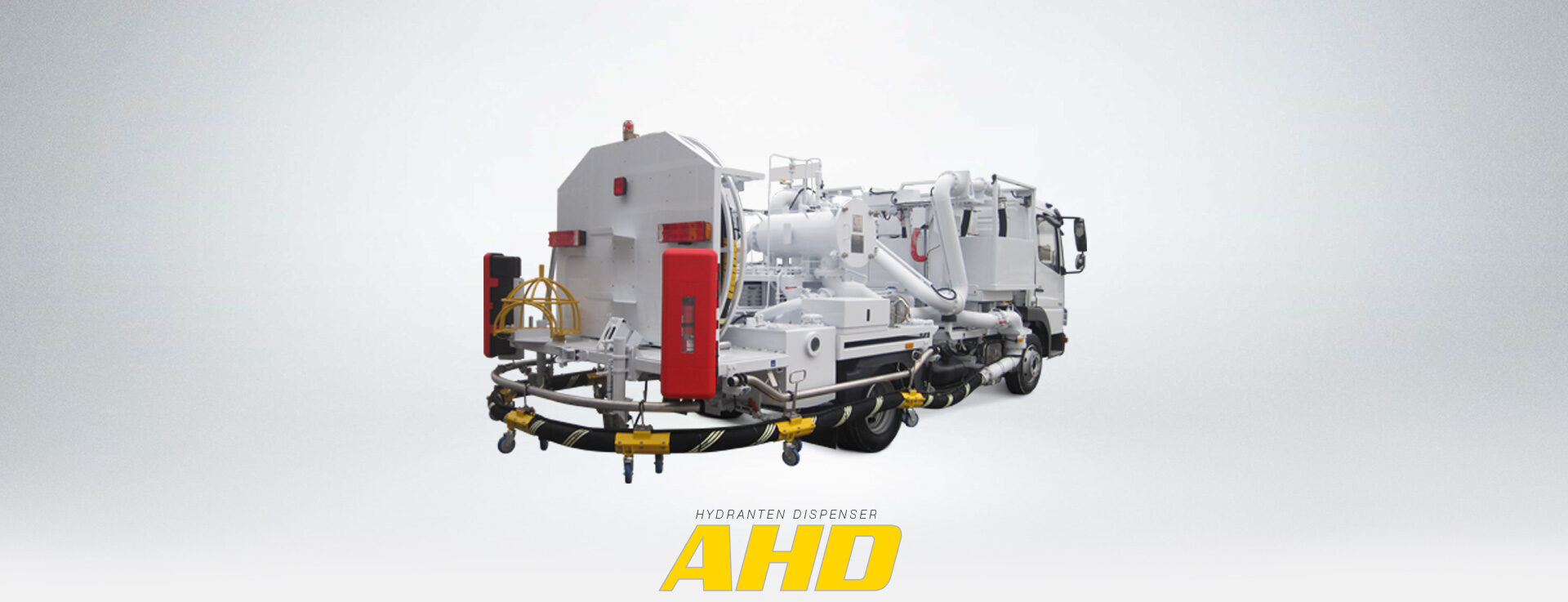

Find out more about Hydrant-Dispenser AHD
